Module 2

Major Storage Layouts

Introduction to Data Storage

Memory Heirarchy (Visually)
- Data is stored in any secondary storage device such as a hard disk.
- To process any data you need to load the data from the hard disk on the main memory
- The CPU also has to load the data onto the caches of the computer
- The CPU will also load smaller bits of the data onto the register which it works directly on
The higher the level of the memory the faster the processing speed however it has inverse the amount of memory space
Secondary Storage / External Data Storage
- (Hard Disk)
  - A mechanical device with different tracks and sectors
  - To obtain a piece of data, a row of a table, it is stored on a sector (small arc) of a track (concentric circles) on a specific platter
  - To read the data the reader has to reach a specific point on the platter and read the data
  - Since the device is mechanical it is slow
- Tapes (Outdated)
  - Can only read pages in sequence
  - cheaper than disks used for archival storage
- Disks (more modern)
  - Can retrieve random page at fixed cost
  - Reading several consecutive pages is much cheaper than reading them in random order
- SSD (Solid State Drive)
  - Uses flash drive technology and is faster than a disk
Data on External Storage
- File : a logical collection of data, physically stored as a set of pages
  - record 1 (ID, Name, Grade, etc.)
  - File - record 1 --> n
- File organization : Method of arranging a file of records on external storage organized by Record ID (rid)
- Architecture
  - Buffer manager stores pages from external storage to main memory buffer pool
  - File and index layers make calls to the buffer manager

Alternative File organizations

Heap Files
- Random Order, Suitable when typical access is a file scan retrieving all records
- data stored as multiple pages, header page and multiple data pages (subset of the table) connected in a heap (connected to each other through pointer)
- As data gets inserted it gets put into empty pages
- Advantages (effiecient)
  - For bulk loading data
  - for relatively small relations as indexing overheads are avoided
  - when queries that need to fetch proportion of stored records
- Disadvantages (not efficient)
  - for selective queries
  - for sorting, may be time-consuming
Sorted Files
- Best if records must be retrieved in some order or only a 'range' of records is needed
- Based off of some attribute

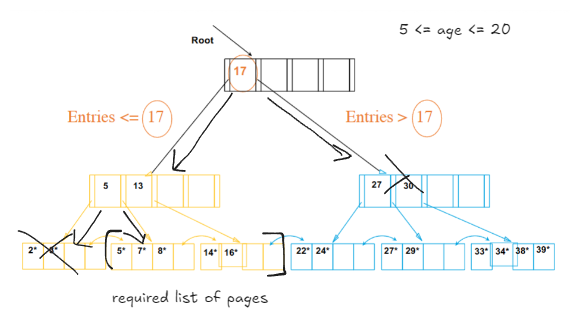

Indexes (B+ Tree indexes example)
- Data structures to organize records via trees or hashing
- Speeds up selection on the search key fields
- Any subset of the fields of a relation can be the search key for an index on the relation
- An index contains a collection of data entries and supports effecient retrieval of all data entries k* with a give value k

Cost Model
- Cost Measure - Number of page accesses
  - Ex, if you are reading 3 pages, less time consuming, than reading 1 page
  - A good cost model can help you identify ways to minimize page cost (I/O cost) and reduce time consumption in the application
- Reasoning
  - Page access cost is usually the dominant cost of database operations
  - An accurate model is too complex for analyzing algorithms

Major indexing schemes in database systems

Hash Based Indexing

Good for equality selections
- to select a specific object based on an attribute (student; age = 10, id = 2)
- used in many applications such as finding a record from an id in a bank
Hash function h :
- h(r) = bucket in which (data entry for) record r belongs. h looks at the search key fields of r
- the hash function takes the search key (id, age, etc.) and determines which bucket to store the data in
Alternative for data entry *k in Index
- In a data entry *k we can store
  - Data record with key value k
  - <k, rid (record id) of data record with search key value k>
  - <k, list of rids (record ids) of data records with search key k>

Index Classification

Clustered vs Unclustered
- If order of data records is the same as, or 'close to', order of data entries, then called clustered index
  - A file can be clustered on at most one search key
Understanding the workload
- For each query in the workload
  - Which relations does it access?
    - if all the queries access the same relation that is a relation we can make an index on
  - which attributes are retrieved?
    - SELECT name FROM Employees WHERE age = ?
  - which attributes are involved in selection/join conditions
    - based of the type of query the chosen indexing can reduce the workload
  - How selective are these conditions likely to be
    - High selectiveness means you can take advantage of indexing, low selectiveness (90% of the database is being selected) means indexing might not be so useful
- For each update in the workload
  - Indexing data means storing the key and requires storage overhead and requires maintenance.
  - Which attributes are involved in selection/join conditions? How selective are these conditions likely to be?
  - The type of update (INSERT/DELETE/UPDATE) and the attributes that are affected
  - If you have a lot of maintenance or updates you need to be careful in choosing the index or to make one at all
Choice of Indexes
- What indexes should you create?
- Which relations should have indexes?
- What fields should be the search key?
- Should you build several indexes?
- For each index, what kind of an index should it be?
Creating a new Index
- Guidelines
  - Attributes in the WHERE clause : These are candidates for index keys
  - Multi-attribute search keys : Keys should be considered when a WHERE clause contains several conditions
  - Indexes benefit multiple queries : Since only one index can be clustered per relation, choose it based on important queries that would benefit the most from clustering
- Examples
  - SELECT E.dno FROM Emp E WHERE E.age > 40
    - B+ tree index on E.age can be used to get qualifying tuples

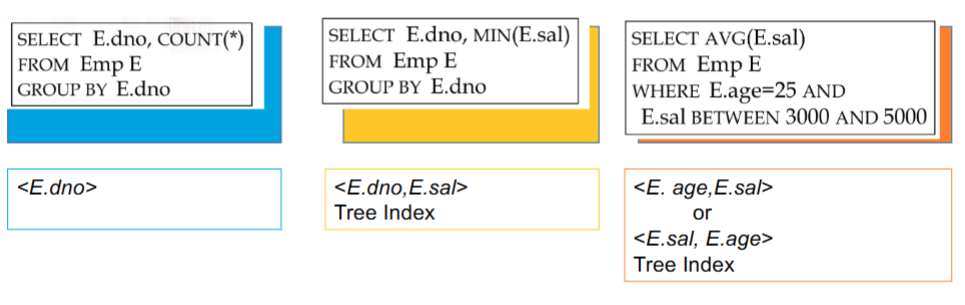

  - SELECT E.dno COUNT(*) FROM Emp E WHERE E.age>10 GROUP BY E.dno
    - Consider the GROUP BY query
    - Can also benefit from a B+ tree index
  - SELECT E.dno FROM Emp E WHERE E.hobby=Stamps
    - Equality queries and duplicates: Clustering helps
    - Hash on Hobby
Indexes with Composite Search keys

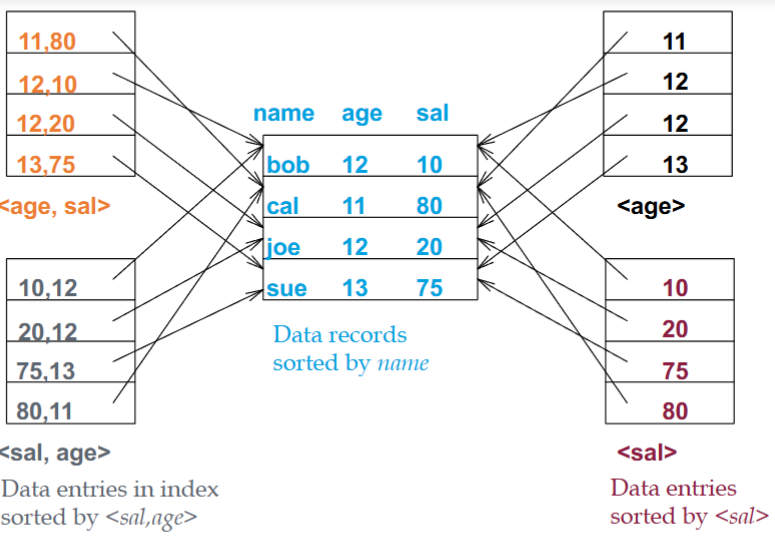

- You can have multiple indexes sorted by a single value or an index sorted by composite values such as <sal,age> which is sorted on salary or <age,sal> which is sorted on age
- Orthogonal to Clustering
  - To retrieve Emp records with
    - age=30 AND sal=4000
    - an index of <age,sal>
- Clustered Tree
  - If condition is: 20<age<30 AND 3000<sal<5000
    - Index on <age,sal> or <sal,age>
- Clustered
  - If condition is: age=30 AND 3000<sal<5000
    - Clustered <age,sal> index much better than <sal,age> index
    - because age is more selective
Index only Plans
- A number of queries can be answered without retrieving any tuples from one or more of the relations involved if a suitable index is available

Transactions/ACID Properties

Principles of Transactions : ACID Properties

A transaction is the DBMS's abstract view of a user program: a sequence of reads and writes
A user's program may carry out many operations on the data retrieved, but the DBMS is only concern about what data is red/written from/to the database

Concurrency in DBMS
- We might have multiple transactions running at the same time; we might use queue to run them one-by-one; thus we need to reach concurrency among different transactions that run on the database system
- Potential Issues : Effects of interleaving transactions, and crashes
Principles of Transactions
- Atomicity - all or nothing
  - Every transaction needs to be atomic; all the transactions need to be run in their entirety or none at all
  - The user either gets a message of the entire transaction running / not running as an atomic unit
  - A transaction might commit after completing all it's actions or it could abort after executing some actions
  - Always executing all actions in one step, or not executing any actions at all
  - DBMS logs all actions so that it can undo the actions of aborted transactions
- Consistency - no violation of integrity constraints
  - A designer can define many constraints on a database, and a transaction must leave the database in the same consistent (following all constraints) state
  - Internal Consistency - A transaction which executes along against a consistent database leaves it in a consistent state
    - Transactions do not violate database integrity constraints
  - Transactions are correct programs
- Isolation - concurrent changes invisible -> serializable
  - Each transaction must run as if there are no other transactions running in the system
  - Serializability - If several transactions are executed concurrently, the results must be the same as if they were executed serially in the same order
  - Incomplete Results - An incomplete transaction cannot reveal it's results to other transactions before its commitment
- Durability - committed updates persist
  - Once a transaction commits, the system must guarantee that the results of its operations will never be lost, in spite of subsequent failures

Concurrency Control in Database Systems

Concurrency Control

From above example

The organization of transactions as shown above is known as a schedule
Scheduling Transactions
Serial Schedule
- Schedule that does not interleave the actions of different transactions
Equivalent Schedule
- If S1 and S2 are two schedules we call them equivalent if the effect of two schedules on the database is the same
- For any database state, the effect of executing the first schedule is identical to the effect of executing the second schedule
Serializable Schedule
- A schedule that is equivalent to some serial execution of the transactions
- If S1 and S2 are two schedules we call them equivalent if S2 is a serial schedule (no interleaving) and S1 is equivalent to it

S1
T1 :  A = A + 100                 B = B - 100
T2 :                 A = 1.06 * A                B = 1.06 * B

This is ok but what about

S2
T1 : A = A + 100                               B = B-100  (This loses the
T2 :             A = 1.06 * A \\ B = 1.06 * B                bank money)
---------------------------------------------------------------------------
T1 : R(A) W(A)                          R(B) W(B)
T2 :             R(A) W(A) \\ R(B) W(B)

Conflict Serializable Schedules

Two schedules are conflict equivalent if
- Involve the same actions of the same transactions
- Every pair of conflicting actions is ordered the same way
Schedule S is conflict serializable if S is conflict equivalent to some serial schedule
To find out if we have a conflict serializable schedule by drawing a dependency graph
- one node per transaction
- Edges from Ti to Tj if Tj reads/writes an object last written by Ti
If a dependency graph has no cycles it is conflict serializable

Lock-Based Concurrency Control and Recovery from Failures

Lock-based concurrency control

Strict Two-phase Locking (Strict 2PL) Protocol:

Each transaction must obtain a Shared lock on object before reading, and an exclusive lock on object before writing.
All locks held by a transaction are released when the transaction completes
Strict 2PL allows only serializable schedules.
- It simplifies transaction aborts
  Lock Management
Lock and unlock requests are handled by the lock manager
Locking and unlocking have to be atomic operations
Lock upgrade : transaction that holds a shared lock can be upgraded to hold an exclusive lock
Lock Entry Table
- Client || Lock Mode || Lock Argument
- Shared : S // Exclusive X
Deadlocks
Cycle of transactions waiting for locks to be released by each other.
Deadlock Detection
- Create a waits-for graph:
  - Nodes are transactions
  - There is an edge from Ti to Tj if Ti is waiting for Tj to release a lock
- Periodically check for cycles in the waits-for graph

T1 : S(A) R(A)       S(B)
T2 :            X(B) W(B)            X(C)
T3 :                       S(C) R(C)
T4 :                                 X(B)

T1 : S(A) R(A)       S(B)
T2 :            X(B) W(B)            X(C)
T3 :                       S(C) R(C)       X(A)
T4 :                                 X(B)

Database Recovery

Fault -- causes --> Error -- results in --> Failure
Types of Failures

Transaction Failures
- Transaction aborts (unilaterally or due to deadlock)
- Avg. 3% of transactions abort abnormally
System failures
- Failure of processor, main memory, power supply, etc.
- Main memory contents are lost, but secondary storage contents are safe
- Partial vs. total failure

Media failures
- Failure of secondary storage devices such that the stored data is lost
- Head crash/controller failure (?)
Communication failures
- Lost/undeliverable messages
- Network partitioning
  Local Recovery Management - Architecture

Volatile storage
- Consists of the main memory of the computer system (RAM).
Stable/Persistent storage
- Resilient to failures and loses its contents only in the presence of media failures (e.g., head crashes on dicks).
- Implemented via a combination of hardware (non-volatile storage) and software (stable-write, stable read, clean up) components.
In-Place Update Recovery Information
- Every action of a transaction must not only perform the action, but must also write a log record to an append-only file

  The Log
The following actions are recorded in the log:
- Ti writes an object; the old value and the new value.
  - Log record must go to disk before the changed page!
- Ti commits/aborts: a log record indicating this action.
Log records are chained together by Xact id) so it's easy to undo a specific Xact.
All log related activities are handled transparently by the DBMS.
The log contains information used by the recovery process to restore the consistency of a system. This information may include
- transaction identifier type of operation (action)
- items accessed by the transaction to perform the action
- old value (state) of item (before image)
- new value (state) of item (after image)
- etc.
  Upon recovery:
all of T1's effects should be reflected in the database (REDO if necessary due to a failure)
non of T2's effects should be reflected in the database (UNDO if necessary)

Write Ahead Log Protocol
Notice:
- If a system crashes before a transaction is committed, then all the operations must be undone. Only need the before images (undo portion of the log).
- Once a transaction is committed, some of its actions might have to be redone. Need the after images (redo portion of the log).
WAL protocol :
1. Before a stable database is updated, the undo portion of the log should be written to the stable log
2. When a transaction commits, the redo portion of the log must be written to stable log prior to the updating of the stable database.
  Recovering from a crash
there are 3 phases in the Aries recovery algorithm
- Analysis : Scan the log forward (from the most recent checkpoint) to identify all Xacts that were active, and all dirty pages in the buffer at the time of the crash
- Redo
  - REDO'ing an action means performing it again
  - The REDO operation uses the log information and performs the action that might have been done before
  - The REDO operation generates the new image
- Undo
  - UNDO'ing an action means to restore the object to it's before image
  - The UNDO operation uses the log information and restores the old value of the object
